Welcome to WaterRocketPy

PyPI Version Build Status Python Versions License

The comprehensive Python toolkit for water rocket simulation, analysis, and optimization.

WaterRocketPy brings the fascinating physics of water rockets to your fingertips. Whether you're an educator demonstrating physics principles, a student conducting research, or an enthusiast optimizing your next launch, this package provides everything you need to understand and predict water rocket performance.

Quick Start

Get up and running in minutes:

1
pip install waterrocketpy

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
from waterrocketpy.core.simulation import WaterRocketSimulator
from waterrocketpy.rocket.builder import RocketBuilder,create_standard_rocket

rocket = create_standard_rocket()
builder = RocketBuilder.from_dict(rocket.__dict__)
sim_params = builder.to_simulation_params()

simulator = WaterRocketSimulator()
flight_data = simulator.simulate(sim_params)

print(f"Maximum altitude: {flight_data.max_altitude:.2f} m")
print(f"Flight time: {flight_data.flight_time:.1f} s")

That's it! You've just simulated your first water rocket.

Key Capabilities

Physics-Based Simulation Engine (Core)

  • Complete Flight Modeling: From water thrust through air thrust to ballistic flight and landing
  • Thermodynamic Accuracy: Temperature-dependent air expansion, pressure dynamics, and compressible flow
  • Multiple Solver Support: Runge-Kutta methods (RK45, RK23) with adaptive time stepping
  • Detailed Output: 20+ time-series parameters including forces, pressures, temperatures, and flow rates

Rocket Design & Configuration (Rocket)

  • Flexible Builder System: Create custom rockets with different bottle sizes, nozzles, and materials
  • Material Database: Built-in properties for PET, HDPE, and other common bottle materials
  • Standard Configurations: Pre-built rocket templates for quick prototyping
  • Validation System: Automatic parameter checking for physical constraints

Advanced Analysis Tools (Analysis)

  • Parameter Explorer: Multi-dimensional sensitivity analysis with interactive visualizations
  • Energy Breakdown: Detailed tracking of energy flow and losses throughout flight
  • Phase Detection: Automatic identification of water thrust, air thrust, ballistic, and descent phases
  • Statistical Analysis: Batch processing for Monte Carlo simulations and uncertainty quantification

Optimization Capabilities (Optimization)

  • Multi-Objective Optimization: Simultaneously optimize for altitude, velocity, and flight time
  • Constraint Handling: Physical limits on pressure, geometry, and materials
  • Algorithm Selection: Differential evolution, Nelder-Mead, and custom optimization strategies
  • Design Exploration: Automated parameter sweeps and design space visualization

Visualization Suite (Visualization)

  • Flight Visualization: Plotting of all flight parameters with phase highlighting
  • 2D Trajectory Animation: Real-time flight path visualization for presentations
  • Batch Comparison: Multi-run analysis with statistical summaries
  • Energy Flow Diagrams: Sankey diagrams showing energy distribution and losses

Package Architecture

WaterRocketPy is organized into six main modules, each serving a specific purpose:

1
2
3
4
5
6
7
waterrocketpy/
├── core/          # Simulation engine and physics calculations
├── rocket/        # Rocket design and configuration tools
├── optimization/  # Parameter optimization algorithms
├── visualization/ # Plotting, animation, and data exploration
├── analysis/      # Advanced analysis and energy breakdowns
└── utils/         # Data I/O, validation, and utilities

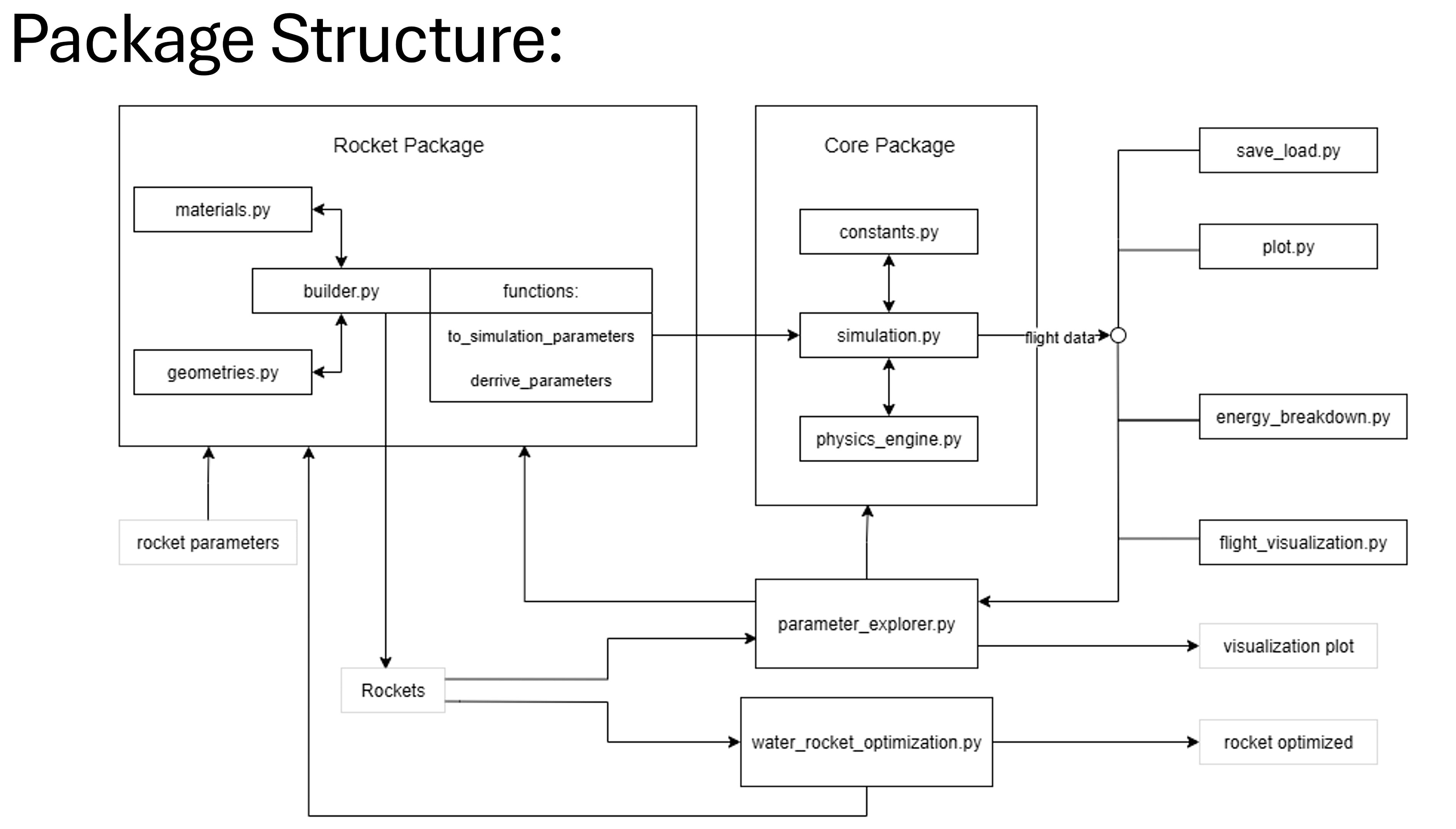

Package Structure

Core Module

The heart of WaterRocketPy, containing the physics engine and main simulator: - simulation.py - Main simulation controller and data management - physics_engine.py - All physics calculations and equations of motion
- constants.py - Physical constants and default parameters - validation.py - Parameter validation and error checking

Rocket Module

Tools for defining and building rocket configurations: - builder.py - Rocket builder classes and standard configurations - geometry.py - Geometric calculations for bottles and nozzles - materials.py - Material properties database and calculations

Optimization Module

Advanced optimization capabilities for rocket design: - water_rocket_optimizer.py - Multi-objective optimization with various algorithms

Visualization Module

Comprehensive plotting and animation tools: - plot_flight_data.py - Standard flight data visualization - parameter_explorer.py - Interactive parameter exploration - flight_animation.py - 3D trajectory animations

Analysis Module

Advanced analysis tools for deeper insights: - energy_breakdown.py - Energy flow analysis throughout flight - energy_breakdown_plot.py - Visualization of energy distributions

Utils Module

Supporting utilities for data management: - saver.py - Save simulation results in multiple formats - loader.py - Load and process simulation data

Getting Started

Installation

From PyPI (Recommended):

1
pip install waterrocketpy

From Source:

1
2
3
git clone https://github.com/Cube002/waterrocketpy.git
cd waterrocketpy
pip install -e .

Your First Simulation

Try our interactive examples:

Explore real-world applications:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
# Parameter optimization
from waterrocketpy.optimization import optimize_for_altitude
result = optimize_for_altitude(maxiter=50)

# Energy analysis
from waterrocketpy.analysis import plot_energy_breakdown
plot_energy_breakdown(flight_data)

# Parameter exploration
from waterrocketpy.visualization import ParameterExplorer
explorer = ParameterExplorer()
explorer.explore_parameters(param_ranges)

Educational Applications

WaterRocketPy is designed with education in mind:

  • Physics Demonstrations: Instantly visualize complex physics concepts
  • Student Research Projects: Tools for hypothesis testing and experimental design
  • Competition Preparation: Optimize designs for maximum performance
  • Curriculum Integration: Ready-made examples for classroom use

Physics Concepts Covered

  • Fluid dynamics and Bernoulli's principle
  • Thermodynamics and adiabatic processes
  • Conservation of mass, energy, and momentum
  • Aerodynamics and drag modeling
  • Optimization and engineering design

Community & Support

  • Documentation: Comprehensive guides and API reference
  • Examples: 10+ detailed example scripts and Jupyter notebooks
  • GitHub: Source code, issues, and discussions
  • PyPI: Easy installation and version management

Contributing

We welcome contributions of all kinds: - Bug reports and feature requests - Code improvements and new features - Documentation enhancements - Example scripts and use cases

See our Contributing Guidelines for details.

License & Credits

  • License: MIT License - Free for academic and commercial use
  • Author: Pablo M (pablo.marg8@gmail.com)
  • Physics Models: Based on established fluid dynamics principles
  • Dependencies: NumPy, SciPy, Matplotlib

Ready to explore the physics of water rockets? Get started now →
